Straight Tee
Connects three pipes of the same nominal size.
Butt Weld Fittings
Pipe Tees.
Precision branch fittings engineered to divide, combine or redirect flow while preserving alignment, pressure integrity and dependable system performance.
Explore the rangeNavkar / Products / Tee
Product Overview
Built for reliable branch flow.
Navkar butt-weld tees create strong, permanent T-shaped branch connections in welded piping systems. Straight, reducing and cross configurations are available across broad size, schedule and alloy ranges for demanding industrial service.
½–48 inSize range
4 FormsProduct range
Equal / Red.Branch options
XXSUp to schedule
Tee Range
Four forms. One purpose.
Select the branch geometry that suits the required flow split, outlet size and piping configuration.
Reducing Tee
Creates a branch connection with a smaller outlet size.
Cross
Provides two opposite branches from the main run.
Reducing Cross
Combines opposite branch flow with reduced outlet sizes.
Technical Data
Built to the specification.
Core ordering information is presented in a compact layout that remains clear on desktop, tablet and mobile.
StandardsANSI, ASME, BS, DIN, JIS, EN
FormsStraight tee, reducing tee, cross and reducing cross
DimensionsASME B16.9, ASME B16.28, MSS SP-43
Size½ in to 48 in (15 NB to 1200 NB)
SchedulesSch 5S, 10S, 40S, 80S, 160 and XXS
ConstructionERW, fabricated, seamless and welded
Stainless SteelASTM A403 / ASME SA403
Carbon & Alloy SteelASTM A234 / ASME SA234
Duplex GradesASTM A815 / ASME SA815
High Nickel AlloyASTM B366 / ASME SB366
Final branch dimensions, tolerances, wall thickness, heat treatment and testing must be confirmed against the purchase specification.
Engineering Reference
Dimensions and production.
Straight Tee Dimensions
Dimensional reference for equal branch configurations.
Reducing Tee Dimensions
Dimensional reference for reduced branch configurations.
Production Flow
Reference overview of the tee manufacturing sequence.
Material Capability
Specified for the service.
Follow each material family for grade-specific capability and selection guidance.
Applications
Industries we serve.

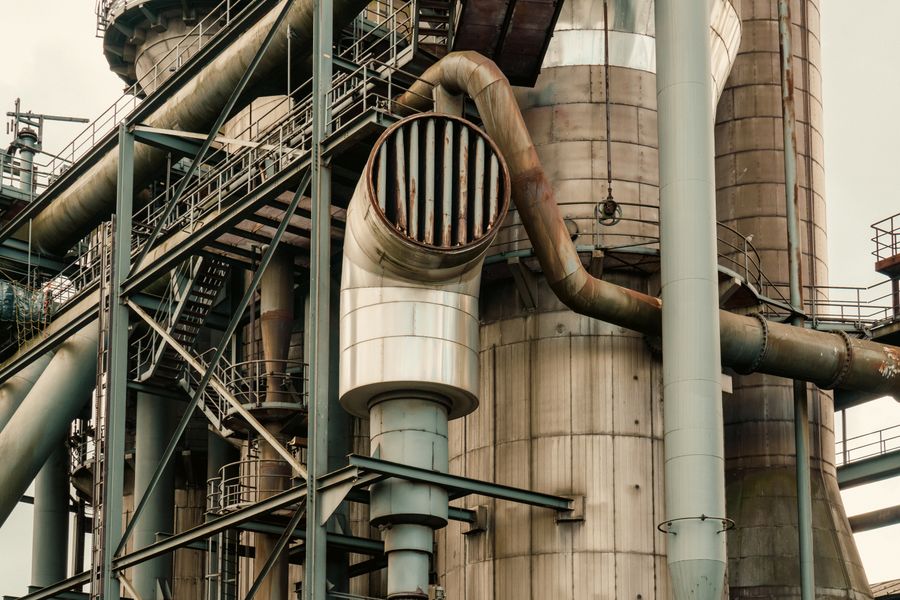

Chemical Plants
Power Plants
Oil & Gas
Petrochemical
Project Support
Specify your next tee requirement.
Share the material grade, run and branch sizes, schedule, form, quantity and delivery location with the Navkar team.
Request a quote
