90 Degree Elbow
Precise right-angle directional change for industrial piping.
Butt Weld Fittings
Pipe Elbows.
Precision fittings for changing flow direction while preserving alignment, pressure integrity and dependable pipeline performance.
Explore the rangeNavkar / Products / Elbow
Product Overview
Designed to keep flow moving.
Navkar butt-weld elbows create controlled directional changes in welded piping systems. Multiple angles, radii, schedules and alloy families support applications from standard process lines to demanding pressure and corrosion service.
½–48 inSize range
45° / 90°Standard angles
LR / SRRadius options
XXSUp to schedule
Elbow Range
Four forms. One purpose.
Select the geometry that suits the required directional change, available space and flow characteristics.
45 Degree Elbow
Gradual redirection with reduced disturbance to system flow.
180 Degree Return
Complete flow reversal where installation space is limited.
Long Radius Bend
Smoother directional change with lower turbulence and loss.
Technical Data
Built to the specification.
Core ordering information from the supplied product data, presented without the oversized tables that caused the original mobile overflow.
StandardsANSI, ASME, BS, DIN, JIS, EN
Forms90° elbow, 45° elbow, 180° return, reducing and mitered elbow
DimensionsASME B16.9, ASME B16.28, MSS SP-43
Size½ in to 48 in (15 NB to 1200 NB)
SchedulesSch 5S, 10S, 40S, 80S, 160 and XXS
ConstructionERW, fabricated, seamless and welded
Stainless SteelASTM A403 / ASME SA403
Carbon & Alloy SteelASTM A234 / ASME SA234
Duplex GradesASTM A815 / ASME SA815
High Nickel AlloyASTM B366 / ASME SB366
Final dimensions, tolerances, wall thickness, heat treatment and testing must be confirmed against the purchase specification.
Engineering Reference
Dimensions and production.
Product Datasheet
General technical reference for butt-weld elbows.

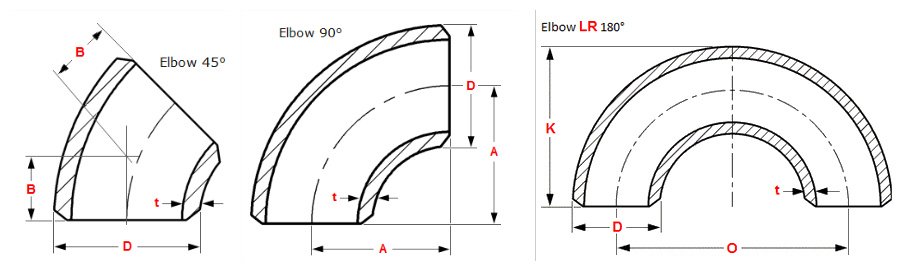

45° & 90° Dimensions
Dimensional reference for long-radius configurations.

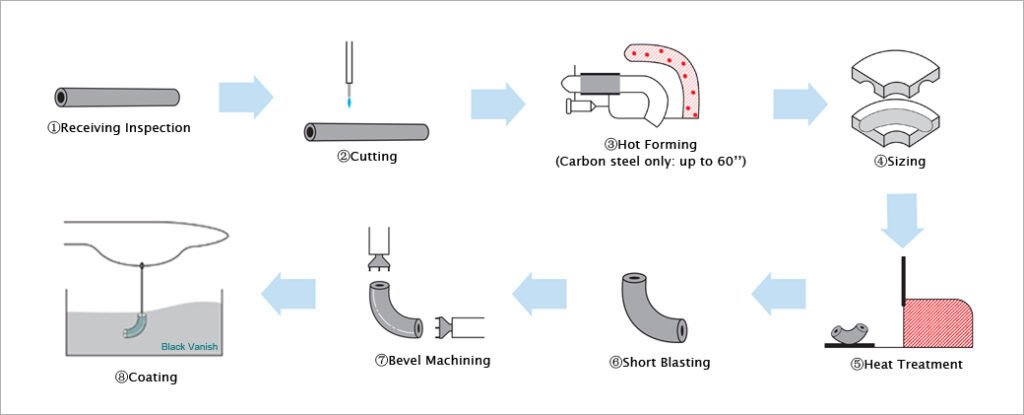

Production Flow
Reference overview of the manufacturing sequence.
Material Capability
Specified for the service.
Follow each material family for grade-specific capability and selection guidance.
Applications
Industries we serve.
Chemical Plants
Power Plants
Oil & Gas
Petrochemical
Project Support
Specify your next elbow requirement.
Share the material grade, size, schedule, angle, radius, quantity and delivery location with the Navkar team.
Request a quote
