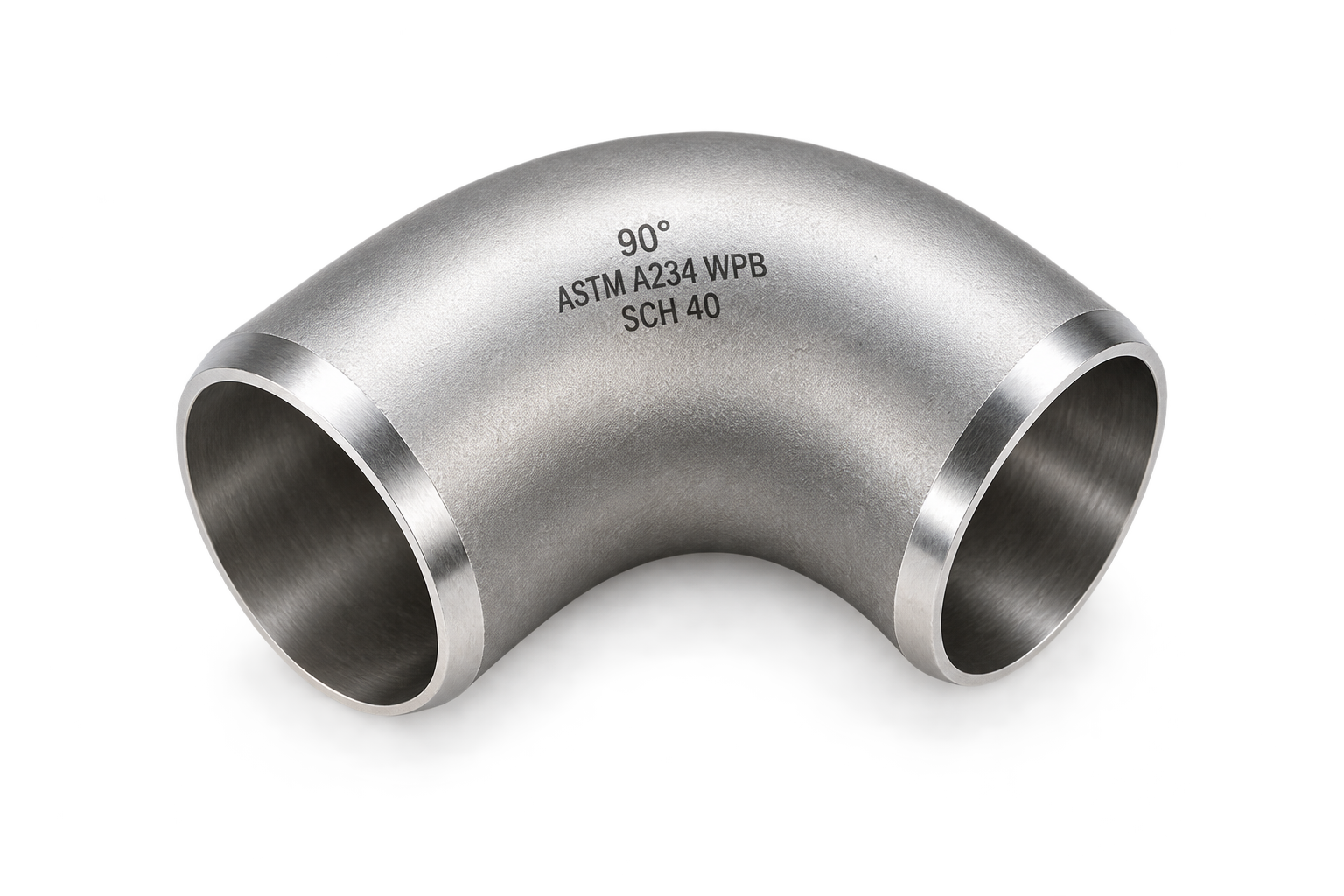

90 Degree Elbow
Precise right-angle directional change for industrial piping.
Butt Weld Fittings
Pipe Returns.
Engineered 180-degree fittings for complete flow reversal while preserving alignment, pressure integrity and dependable pipeline performance.
Explore the rangeNavkar / Products / Returns
Product Overview
Built to reverse flow precisely.
Navkar butt-weld returns redirect process media through 180 degrees in a compact welded connection. Long- and short-radius options, multiple schedules and broad alloy capability support standard process lines as well as demanding pressure and corrosion service.
½–48 inSize range
180°Flow reversal
LR / SRRadius options
XXSUp to schedule
Return Range
Four forms. One engineered purpose.
Select the geometry that fits the required directional change, installation envelope and flow characteristics.

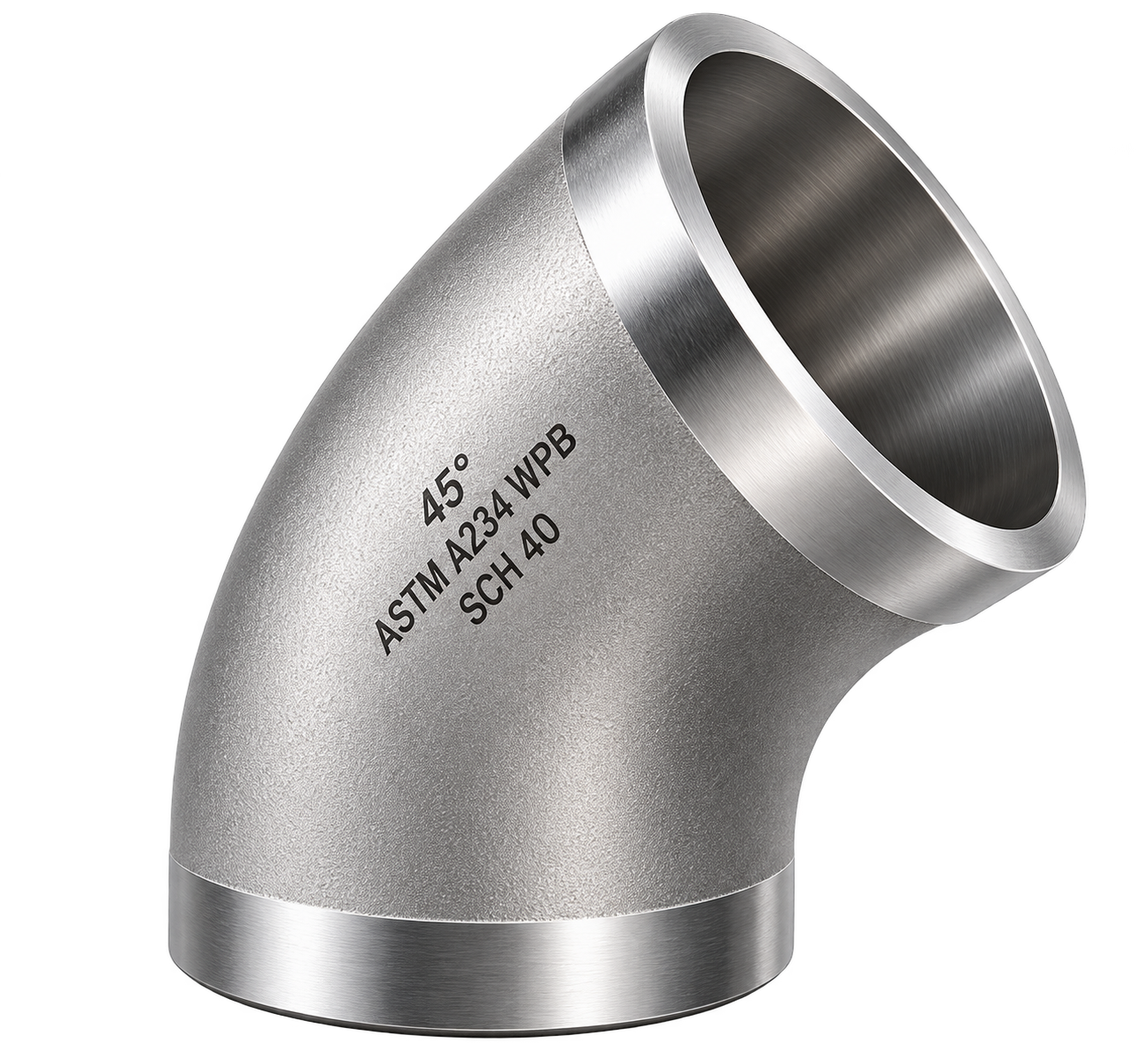

45 Degree Elbow
Gradual redirection with reduced disturbance to system flow.

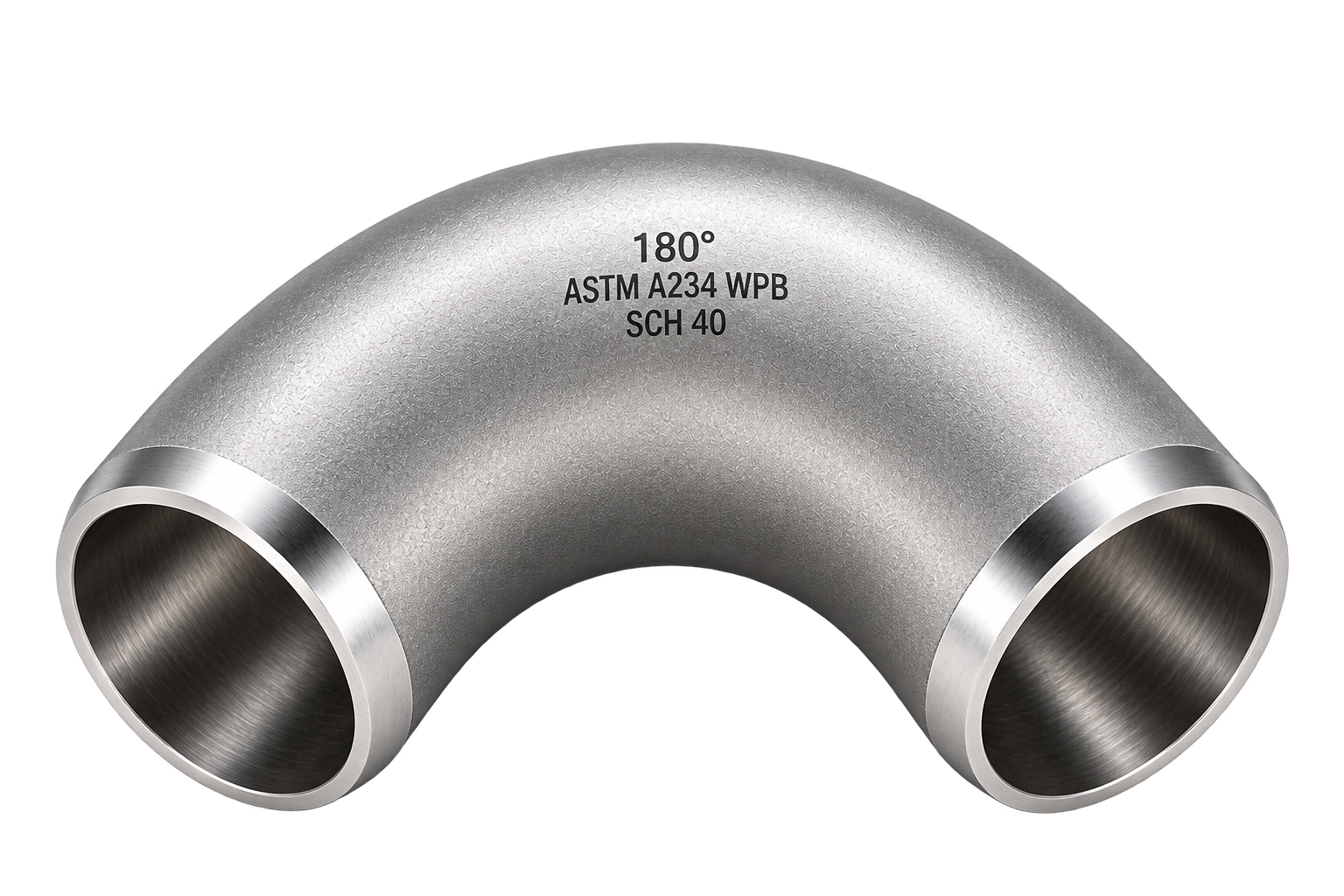

180 Degree Return
Complete flow reversal where installation space is limited.

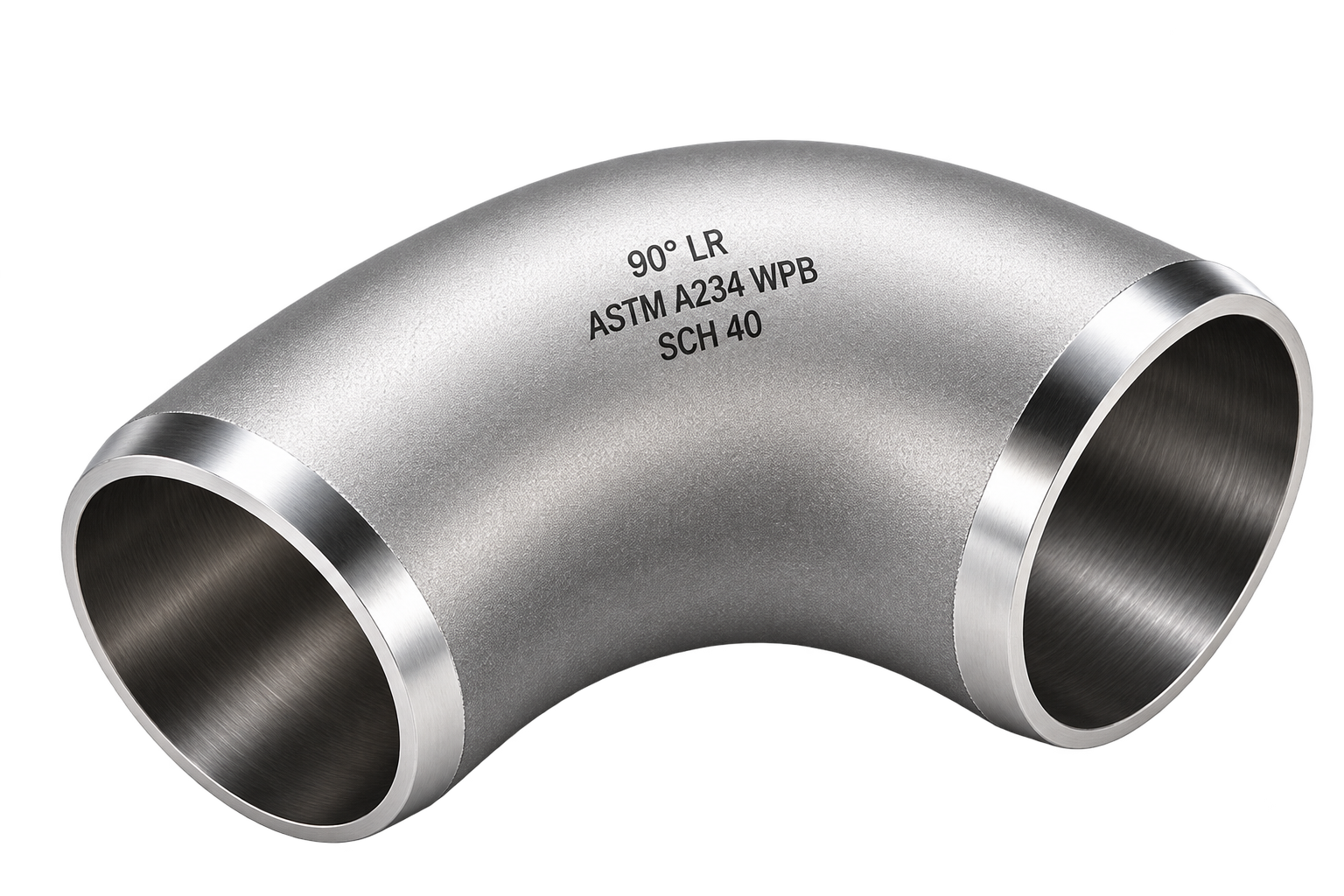

Long Radius Bend
Smoother directional change with lower turbulence and pressure loss.
Technical Data
Built to the specification.
Core ordering information is presented in a compact, responsive format that stays readable on desktop, tablet and mobile.
StandardsANSI, ASME, BS, DIN, JIS, EN
Forms45° elbow, 90° elbow, 180° return, reducing and mitered elbow
DimensionsASME B16.9, ASME B16.28, MSS SP-43
Size½ in to 48 in (15 NB to 1200 NB)
SchedulesSch 5S, 10S, 40S, 80S, 160 and XXS
ConstructionERW, fabricated, seamless and welded
Stainless SteelASTM A403 / ASME SA403
Carbon & Alloy SteelASTM A234 / ASME SA234
Duplex GradesASTM A815 / ASME SA815
High Nickel AlloyASTM B366 / ASME SB366
Final dimensions, tolerances, wall thickness, heat treatment and testing must be confirmed against the purchase specification.
Engineering Reference
Dimensions and production.
Product Datasheet
General technical reference for butt-weld returns and elbows.
Short Radius Dimensions
Dimensional reference for compact return configurations.
Production Flow
Reference overview of the return manufacturing sequence.
Material Capability
Specified for the service.
Follow each material family for grade-specific capability and selection guidance.
Applications
Industries we serve.
Chemical Plants
Power Plants
Oil & Gas
Petrochemical
Project Support
Specify your next return requirement.
Share the material grade, size, schedule, radius, quantity and delivery location with the Navkar team.
Request a quote
