Standard | ANSI, ASME, BS, DIN, JIS, EN |
Form | Long, Short, Lap Joint |
Dimension | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 etc. |
Size | 1/2" to 48" (15 NB to 1200NB) |
Schedule | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
Type | ERW / Fabricated / Seamless / Welded |
Specification for High Nickel Alloy | ASTM B366 / ASME SB366 |
Specification for Alloy Steel | ASTM A234 / ASME SA234 |
Specification for Duplex & Super Duplex | ASTM A815 / ASME SA815 |
Specification for Stainless Steel | ASTM A403 / ASME SA403 |
Specification for Carbon Steel | ASTM A234 / ASME SA234 |
DIN | DIN2615, DIN2605, DIN2616, DIN28011, DIN2617 |
Scan & Download

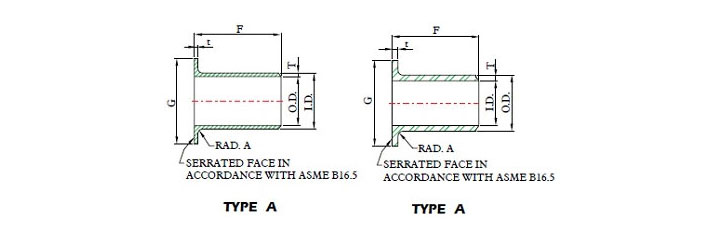

Product | Nom. Pipe Size | Dia (G) | Length (F), Short | Outside Dia (O.D.) | Sch 160, Inside Dia (I.D.) | Sch 160, Lap Thickness (t) | Schedule 160, Wall Thickness (T) | XX Strong Wall Approx. Weight | XX Strong Wall, Inside Dia (I.D.) |
1 1/2″ | 1.5 | 2.875 | 2 | 1.9 | 1.338 | 0.281 | 0.281 | 2.98 | 1.1 |
1 1/2″ | 1.5 | 2.875 | 4 | 1.9 | 0.15 | 0.15 | 1.49 | 1.5 | 0.2 |
1 1/4″ | 1.25 | 2.5 | 2 | 1.66 | 1.16 | 0.25 | 0.25 | 2.52 | 0.896 |
1 1/4″ | 1.25 | 2.5 | 4 | 1.66 | 0.14 | 0.14 | 1.26 | 1.278 | 0.191 |
1″ | 1 | 2 | 2 | 1.315 | 0.815 | 0.25 | 0.25 | 1.76 | 0.599 |
1″ | 1 | 2 | 4 | 1.315 | 0.133 | 0.133 | 0.88 | 0.957 | 0.179 |
1/2″ | 0.5 | 1.375 | 2 | 0.84 | 0.464 | 0.187 | 0.188 | 0.68 | 0.252 |
1/2″ | 0.5 | 1.375 | 3 | 0.84 | 0.109 | 0.109 | 0.34 | 0.546 | 0.147 |
10″ | 10 | 12.75 | 5 | 10.75 | 8.5 | 1.125 | 1.125 | – | – |
10″ | 10 | 12.75 | 10 | 10.75 | 0.365 | 0.365 | 54 | 9.75 | 0.5 |
12″ | 12 | 15 | 6 | 12.75 | 10.126 | 1.312 | 1.312 | – | – |
12″ | 12 | 15 | 10 | 12.75 | 0.375 | 0.375 | 64.5 | 11.75 | 0.5 |
14″ | 14 | 16.25 | 12 | 14 | 0.375 | 0.375 | 84 | 13 | 0.5 |
16″ | 16 | 18.5 | 12 | 16 | 0.375 | 0.375 | 98 | 15 | 0.5 |
18″ | 18 | 21 | 12 | 18 | 0.375 | 0.375 | 136 | 17 | 0.5 |
2 1/2″ | 2.5 | 4.125 | 2.5 | 2.875 | 2.125 | 0.375 | 0.375 | 8.8 | 1.771 |
2 1/2″ | 2.5 | 4.125 | 6 | 2.875 | 0.203 | 0.203 | 4.4 | 2.323 | 0.276 |
2″ | 2 | 3.625 | 2.5 | 2.375 | 1.689 | 0.343 | 0.343 | 6.1 | 1.503 |
2″ | 2 | 3.625 | 6 | 2.375 | 0.154 | 0.154 | 3.05 | 1.939 | 0.218 |
20″ | 20 | 23 | 12 | 20 | 0.375 | 0.375 | 157 | 19 | 0.5 |
3 1/2″ | 3.5 | 5.5 | 3 | 4 | – | – | – | 15.5 | 2.728 |
3 1/2″ | 3.5 | 5.5 | 6 | 4 | 0.226 | 0.226 | 7.75 | 3.364 | 0.318 |
3″ | 3 | 5 | 2.5 | 3.5 | 2.624 | 0.438 | 0.438 | 9.8 | 2.3 |
3″ | 3 | 5 | 6 | 3.5 | 0.216 | 0.216 | 6.5 | 2.9 | 0.3 |
3/4″ | 0.75 | 1.688 | 2 | 1.05 | 0.612 | 0.218 | 0.219 | 0.94 | 0.434 |
3/4″ | 0.75 | 1.688 | 3 | 1.05 | 0.113 | 0.113 | 0.47 | 0.742 | 0.154 |
4″ | 4 | 6.188 | 3 | 4.5 | 3.438 | 0.531 | 0.531 | 19.3 | 3.152 |
4″ | 4 | 6.188 | 6 | 4.5 | 0.237 | 0.237 | 9.65 | 3.826 | 0.337 |
5″ | 5 | 7.313 | 3 | 5.563 | 4.313 | 0.625 | 0.625 | 32.66 | 4.063 |
5″ | 5 | 7.313 | 8 | 5.563 | 0.258 | 0.258 | 16.33 | 4.813 | 0.375 |
6″ | 6 | 8.5 | 3.5 | 6.625 | 5.187 | 0.718 | 0.719 | 45.26 | 4.897 |
6″ | 6 | 8.5 | 8 | 6.625 | 0.28 | 0.28 | 22.63 | 5.761 | 0.432 |
8″ | 8 | 10.625 | 4 | 8.625 | 6.813 | 0.906 | 0.906 | 59.71 | 6.875 |
8″ | 8 | 10.625 | 8 | 8.625 | 0.322 | 0.322 | 34.12 | 7.625 | 0.5 |
Product | Nom. Pipe Size | Dia (G) | Length (F), Short | Outside Dia (O.D.) | Sch 160, Inside Dia (I.D.) | Sch 160, Lap Thickness (t) | Schedule 160, Wall Thickness (T) | XX Strong Wall Approx. Weight | XX Strong Wall, Inside Dia (I.D.) |
1 1/2″ | 1.5 | 2.875 | 2 | 1.9 | 1.338 | 0.281 | 0.281 | 2.98 | 1.1 |
1 1/2″ | 1.5 | 2.875 | 4 | 1.9 | 0.15 | 0.15 | 1.49 | 1.5 | 0.2 |
1 1/4″ | 1.25 | 2.5 | 2 | 1.66 | 1.16 | 0.25 | 0.25 | 2.52 | 0.896 |
1 1/4″ | 1.25 | 2.5 | 4 | 1.66 | 0.14 | 0.14 | 1.26 | 1.278 | 0.191 |
1″ | 1 | 2 | 2 | 1.315 | 0.815 | 0.25 | 0.25 | 1.76 | 0.599 |
1″ | 1 | 2 | 4 | 1.315 | 0.133 | 0.133 | 0.88 | 0.957 | 0.179 |
1/2″ | 0.5 | 1.375 | 2 | 0.84 | 0.464 | 0.187 | 0.188 | 0.68 | 0.252 |
1/2″ | 0.5 | 1.375 | 3 | 0.84 | 0.109 | 0.109 | 0.34 | 0.546 | 0.147 |
10″ | 10 | 12.75 | 5 | 10.75 | 8.5 | 1.125 | 1.125 | – | – |
10″ | 10 | 12.75 | 10 | 10.75 | 0.365 | 0.365 | 54 | 9.75 | 0.5 |
12″ | 12 | 15 | 6 | 12.75 | 10.126 | 1.312 | 1.312 | – | – |
12″ | 12 | 15 | 10 | 12.75 | 0.375 | 0.375 | 64.5 | 11.75 | 0.5 |
14″ | 14 | 16.25 | 12 | 14 | 0.375 | 0.375 | 84 | 13 | 0.5 |
16″ | 16 | 18.5 | 12 | 16 | 0.375 | 0.375 | 98 | 15 | 0.5 |
18″ | 18 | 21 | 12 | 18 | 0.375 | 0.375 | 136 | 17 | 0.5 |
2 1/2″ | 2.5 | 4.125 | 2.5 | 2.875 | 2.125 | 0.375 | 0.375 | 8.8 | 1.771 |
2 1/2″ | 2.5 | 4.125 | 6 | 2.875 | 0.203 | 0.203 | 4.4 | 2.323 | 0.276 |
2″ | 2 | 3.625 | 2.5 | 2.375 | 1.689 | 0.343 | 0.343 | 6.1 | 1.503 |
2″ | 2 | 3.625 | 6 | 2.375 | 0.154 | 0.154 | 3.05 | 1.939 | 0.218 |
20″ | 20 | 23 | 12 | 20 | 0.375 | 0.375 | 157 | 19 | 0.5 |
3 1/2″ | 3.5 | 5.5 | 3 | 4 | – | – | – | 15.5 | 2.728 |
3 1/2″ | 3.5 | 5.5 | 6 | 4 | 0.226 | 0.226 | 7.75 | 3.364 | 0.318 |
3″ | 3 | 5 | 2.5 | 3.5 | 2.624 | 0.438 | 0.438 | 9.8 | 2.3 |
3″ | 3 | 5 | 6 | 3.5 | 0.216 | 0.216 | 6.5 | 2.9 | 0.3 |
3/4″ | 0.75 | 1.688 | 2 | 1.05 | 0.612 | 0.218 | 0.219 | 0.94 | 0.434 |
3/4″ | 0.75 | 1.688 | 3 | 1.05 | 0.113 | 0.113 | 0.47 | 0.742 | 0.154 |
4″ | 4 | 6.188 | 3 | 4.5 | 3.438 | 0.531 | 0.531 | 19.3 | 3.152 |
4″ | 4 | 6.188 | 6 | 4.5 | 0.237 | 0.237 | 9.65 | 3.826 | 0.337 |
5″ | 5 | 7.313 | 3 | 5.563 | 4.313 | 0.625 | 0.625 | 32.66 | 4.063 |
5″ | 5 | 7.313 | 8 | 5.563 | 0.258 | 0.258 | 16.33 | 4.813 | 0.375 |
6″ | 6 | 8.5 | 3.5 | 6.625 | 5.187 | 0.718 | 0.719 | 45.26 | 4.897 |
6″ | 6 | 8.5 | 8 | 6.625 | 0.28 | 0.28 | 22.63 | 5.761 | 0.432 |
8″ | 8 | 10.625 | 4 | 8.625 | 6.813 | 0.906 | 0.906 | 59.71 | 6.875 |
8″ | 8 | 10.625 | 8 | 8.625 | 0.322 | 0.322 | 34.12 | 7.625 | 0.5 |
Nominal Size | Outside Diameter of Barrel | Long Pattern Length, F |
Short Pattern Length, F |
Radius of Fillet, R |
Diameter of Lap, G |
|
NPS | Max. mm. in. |
Min. mm. in. |
mm. in. |
mm. in. |
mm. in. |
mm. in. |
1/2 | 22.8 0.896 |
20.5 0.809 |
76 3.00 |
51 2.00 |
3 0.12 |
35 1.38 |
3/4 | 28.1 1.106 |
25.9 1.019 |
76 3.00 |
51 2.00 |
3 0.12 |
43 1.69 |
1 | 35.0 1.376 |
32.6 1.284 |
102 4.00 |
51 2.00 |
3 0.12 |
51 2.00 |
1 1/4 | 43.6 1.716 |
41.4 1.629 |
102 4.00 |
51 2.00 |
5 0.19 |
64 2.50 |
1 1/2 | 49.9 1.965 |
47.5 1.869 |
102 4.00 |
51 2.00 |
6 0.25 |
73 2.88 |
2 | 62.4 2.456 |
59.5 2.344 |
152 6.00 |
64 2.50 |
8 0.31 |
92 3.62 |
2 1/2 | 75.3 2.966 |
72.2 2.844 |
152 6.00 |
64 2.50 |
8 0.31 |
105 4.12 |
3 | 91.3 3.596 |
88.1 3.469 |
152 6.00 |
64 2.50 |
10 0.38 |
127 5.00 |
3 1/2 | 104.0 4.096 |
100.8 3.969 |
152 6.00 |
76 3.00 |
10 0.38 |
140 5.50 |
4 | 116.7 4.593 |
113.5 4.469 |
152 6.00 |
76 3.00 |
11 0.44 |
157 6.19 |
5 | 144.3 5.683 |
140.5 5.532 |
203 8.00 |
76 3.00 |
11 0.44 |
186 7.31 |
6 | 171.3 6.743 |
167.5 6.594 |
203 8.00 |
89 3.50 |
13 0.50 |
216 8.50 |
8 | 222.1 8.743 |
218.3 8.594 |
203 8.00 |
102 4.00 |
13 0.50 |
270 10.62 |
10 | 277.2 10.913 |
272.3 10.719 |
254 10.00 |
127 5.00 |
13 0.50 |
324 12.75 |
12 | 328.0 12.913 |
323.1 12.719 |
254 10.00 |
152 6.00 |
13 0.50 |
381 15.00 |
14 | 359.9 14.170 |
354.8 13.969 |
305 12.00 |
152 6.00 |
13 0.50 |
413 16.25 |
16 | 411.0 16.180 |
405.6 15.969 |
305 12.00 |
152 6.00 |
13 0.50 |
470 18.50 |
18 | 462.0 18.190 |
456.0 17.969 |
305 12.00 |
152 6.00 |
13 0.50 |
533 21.00 |
20 | 514.0 20.240 |
507.0 19.969 |
305 12.00 |
152 6.00 |
13 0.50 |
584 23.00 |
22 | 565.0 22.240 |
558.0 21.969 |
305 12.00 |
152 6.00 |
13 0.50 |
641 25.25 |
24 | 616.0 24.240 |
609.0 23.969 |
305 12.00 |
152 6.00 |
13 0.50 |
692 27.25 |
